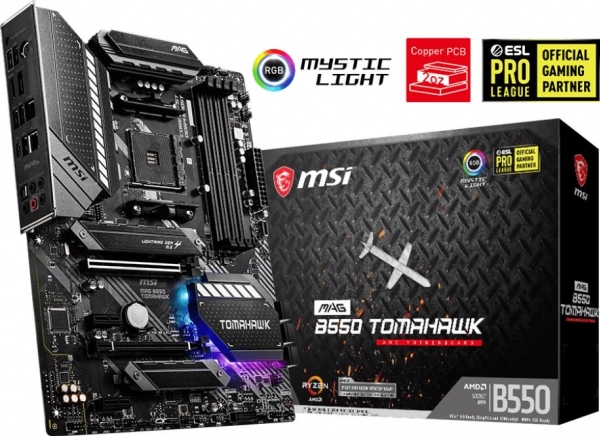

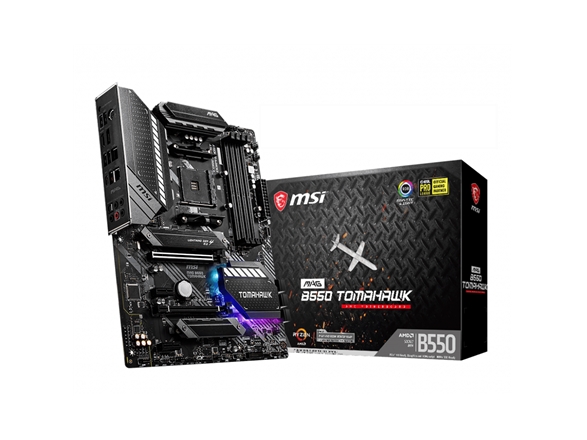

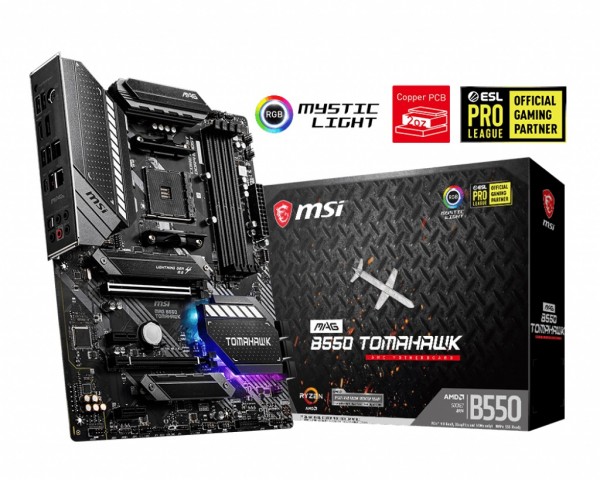

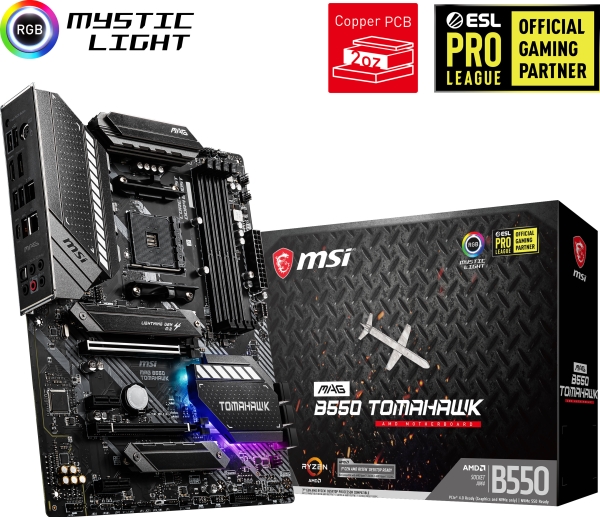

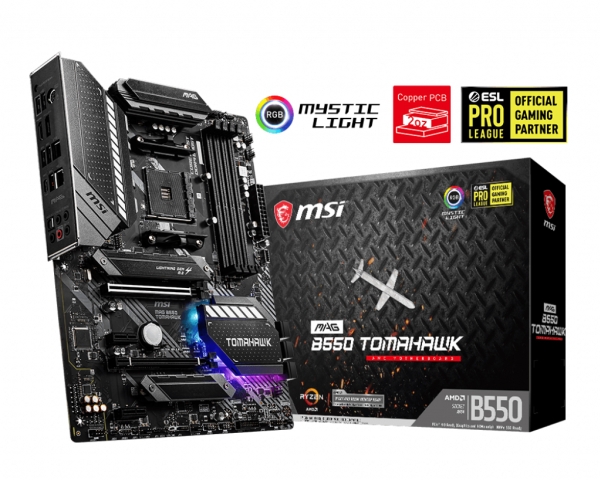

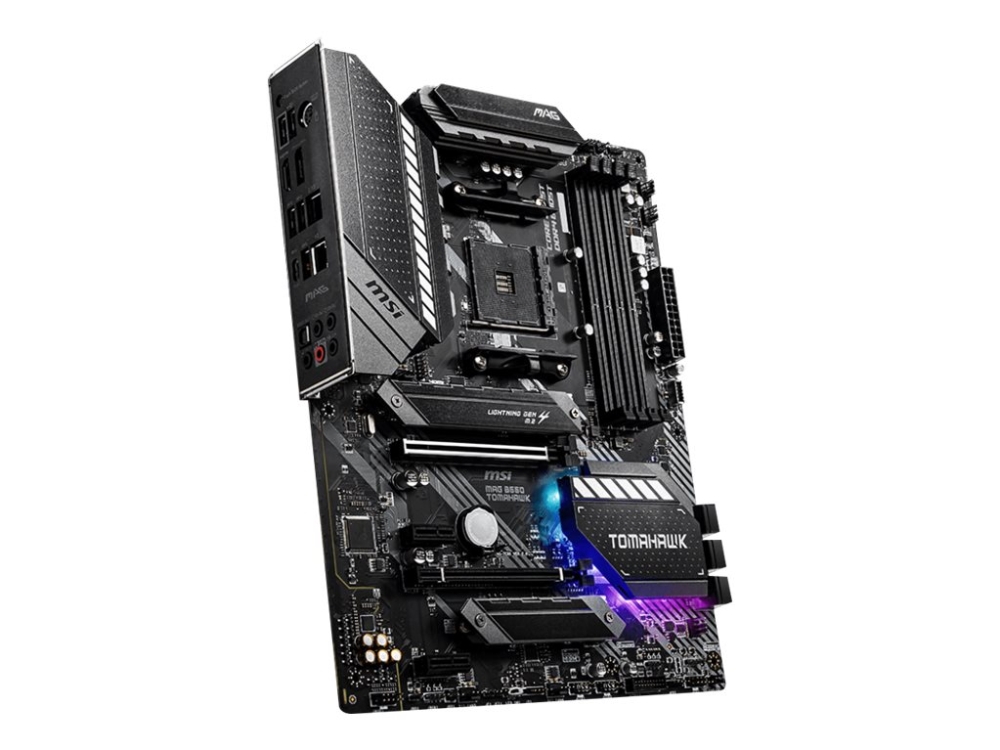

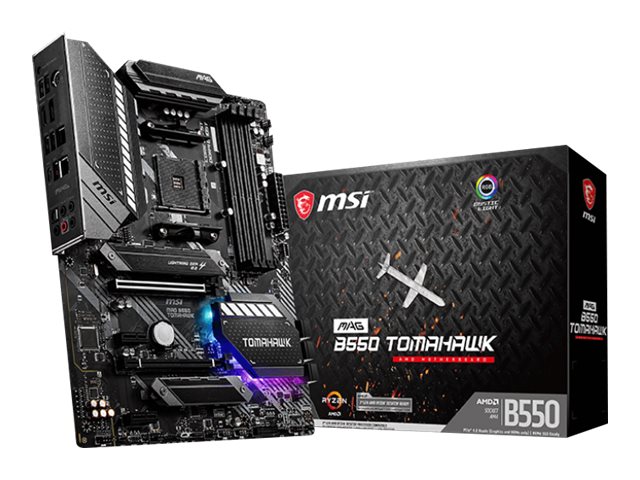

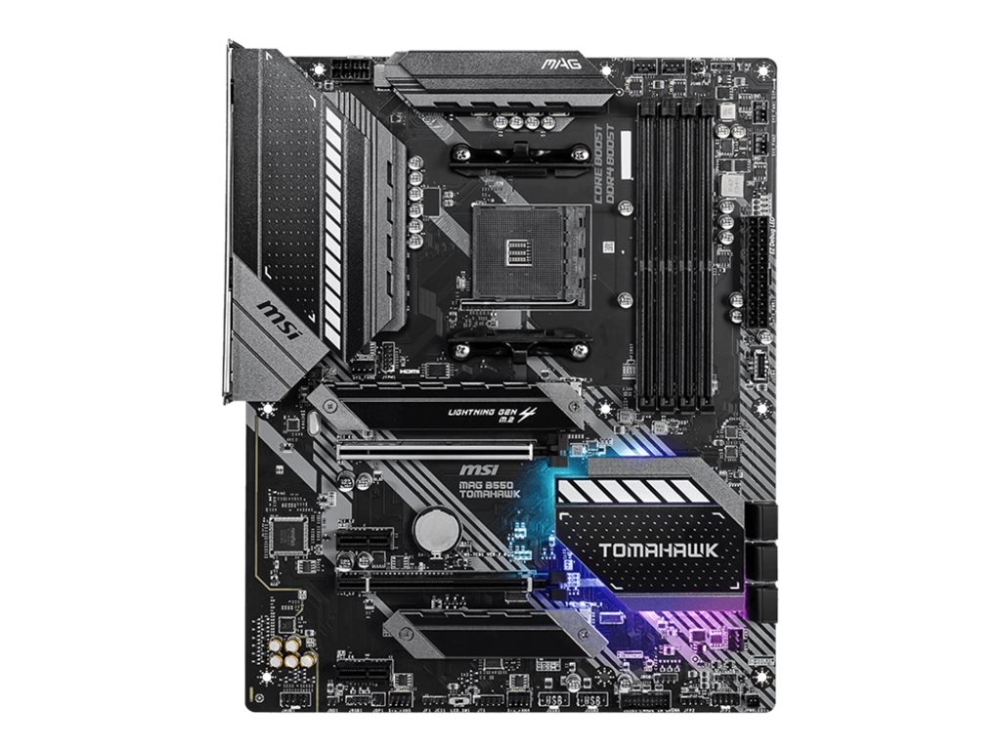

MSI MAG B550 Tomahawk, AMD B550 Mainboard - Sockel AM4

Artikelnummer: [6480313] | Produzent: MSI | Modell nummer: MAGB550TOMAHAWK | EAN: 4719072728625

Sofort versandfertig, Lieferfrist: 2-3 Werktage - Vor 13:00 Uhr bestellen und wir versenden heute. Mehr Info

SONDERANGEBOT

Es gibt 3 auf Lager

Der aktuelle Preis gilt bis zum Abbau des lokalen Lagers

EUR 165,30
ex. MwSt. 138,91
Gesamtbetrag inkl. Versand. 165,30
PayPal Logo
PayPal Logo
In den Warenkorb
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the advanced user experience, the MAG series has a simple installation process coupled with a friendly user interface making it a perfect choice for entry level gamers.
  • Spezifikationen
  • Spezifikationen - Erweitert

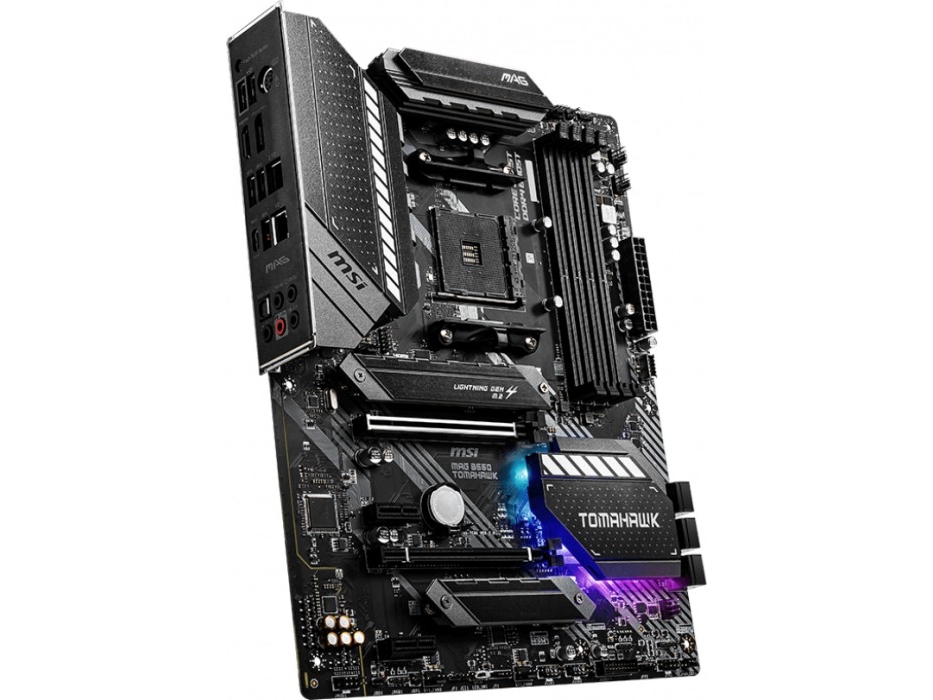

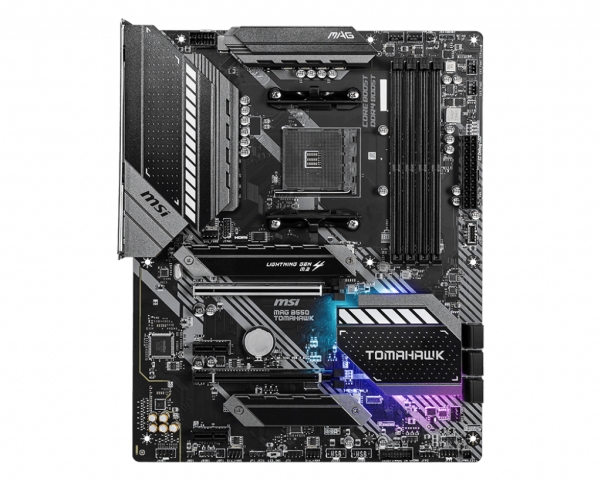

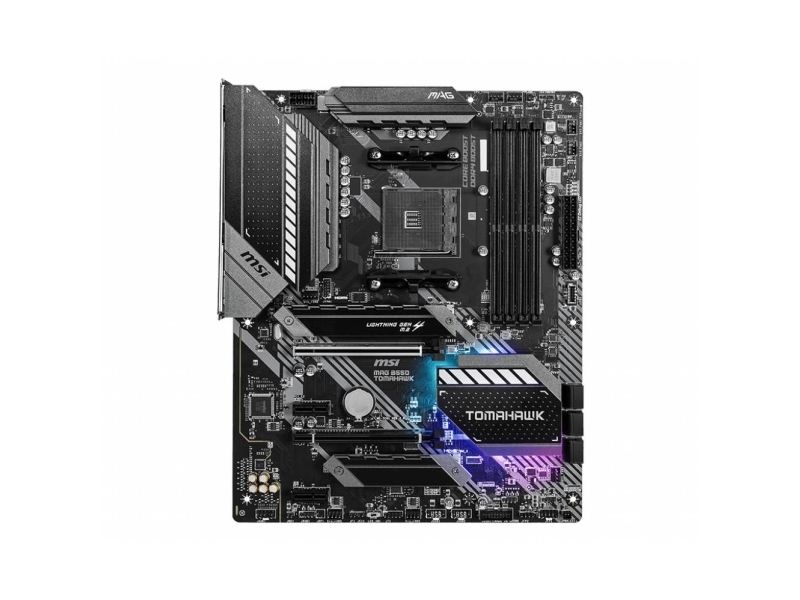

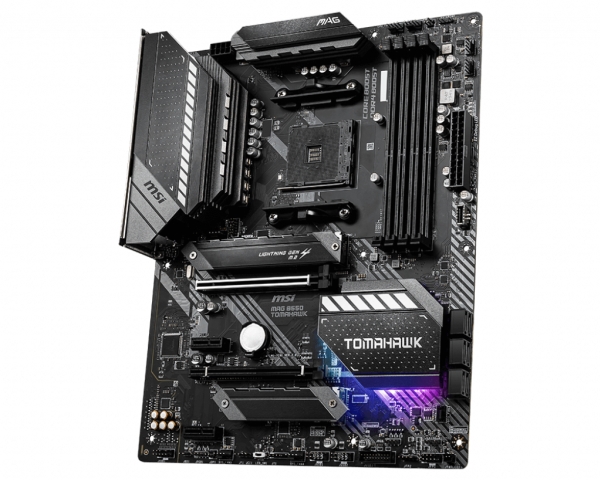

ProduktbeskrivelseMSI MAG B550 TOMAHAWK - bundkort - ATX - Socket AM4 - AMD B550
ProdukttypeBundkort - ATX
ChipsættypeAMD B550
Processor-socket1 x Socket AM4
Kompatible processorerRyzen (understøtter 3. Generation Ryzen and New Generation Ryzen med Radeon Graphics)
Max RAM-størrelse128 GB
RAM understøttet4 DIMM åbninger - DDR4, ikke-ECC, ECC (drift i ikke-ECC tilstand), ikke bufferet
Lagringsporte6 x SATA-600 (RAID), 2 x M.2
USB / FireWire porte1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
AudioHD Audio (8-kanaler)
LANGigabit Ethernet, 2.5 Gigabit Ethernet
Generelt
ProdukttypeBundkort - ATX
ChipsættypeAMD B550
Processor-socketSocket AM4
Max antal processorer1
Kompatible processorerRyzen (understøtter 3. Generation Ryzen and New Generation Ryzen med Radeon Graphics)
Understøttet RAM
Maks. størrelse128 GB
TeknologiDDR4
Bus Clock2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 3066 MHz, 4733 MHz (O.C.), 4866 MHz (O.C.), 5000 MHz (O.C.), 5100 MHz (O.C.)
Understøttet RAM-integritetskonIkke-ECC, ECC (drift i ikke-ECC tilstand)
Registreret eller bufferIkke bufferet
EgenskaberDobbelt kanal hukommelses arkitektur, understøttede ECC-moduler fungerer i ikke-ECC-tilstand, A-XMP support
Audio
TypeHD Audio (8-kanaler)
Audio codecRealtek ALC1200
OverensstemmelsesstandarderHigh Definition Audio
LAN
Netværk controllerRealtek RTL8125B / RTL8111H
Netværks interfacesGigabit Ethernet, 2.5 Gigabit Ethernet
Ekspansion / Konnektivitet
Ekspansionsåbninger1 x CPU
4 x DIMM 288-pins
1 x PCIe 4.0 x16
1 x PCIe 3.0 x16 (x4-modus)
2 x PCIe 3.0 x1
Grænseflade (lagring)SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10
SATA-600 / PCIe 4.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1
PCIe 3.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1

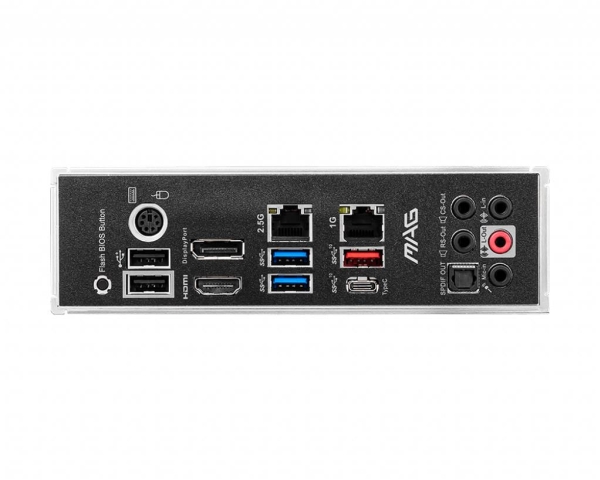

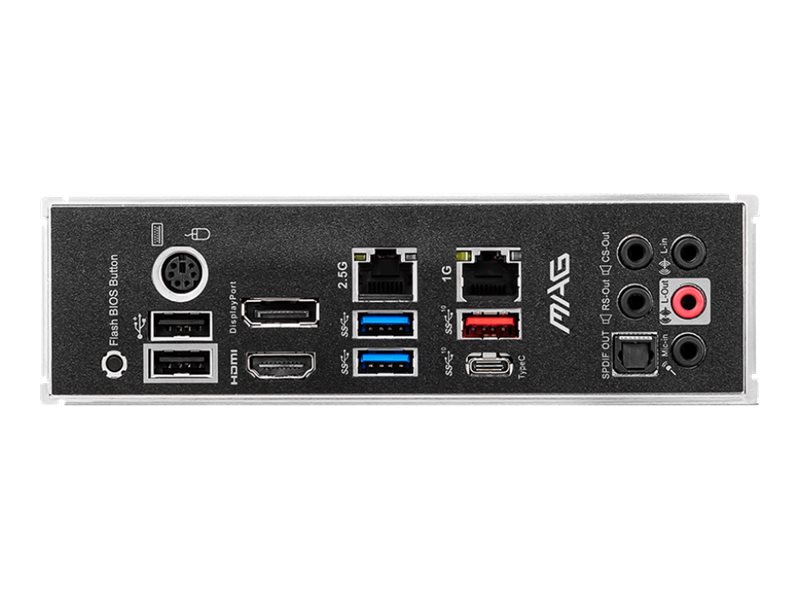

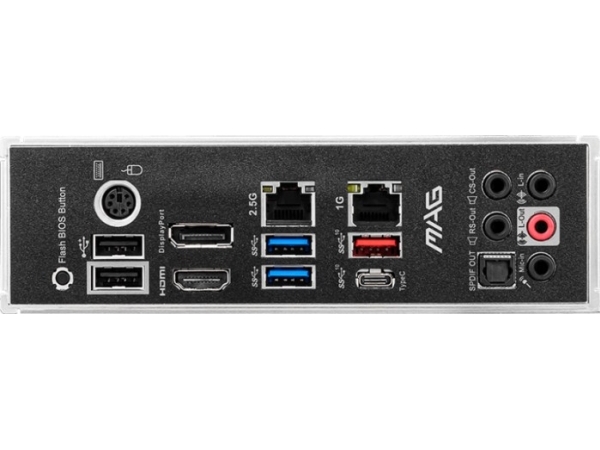

Interface1 x LAN (Gigabit Ethernet)
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x TOSLINK
2 x USB 3.2 Gen 1
1 x USB 3.2 Gen 2
1 x audio linje-ud (centrum/subwoofer) - mini-jack
1 x audio linje-ud (bagtil) - mini-jack
1 x USB-C Gen2
1 x PS/2-tastatur/mus
2 x USB 2.0
1 x HDMI
1 x DisplayPort
1 x LAN (2.5Gigabit Ethernet)
Interne interfaces4 x USB 2.0 - intern stik
2 x USB 3.2 Gen 1 - intern stik
1 x USB-C Gen 1 - intern stik
1 x audio - intern stik
Strømkontakter24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt
Egenskaber

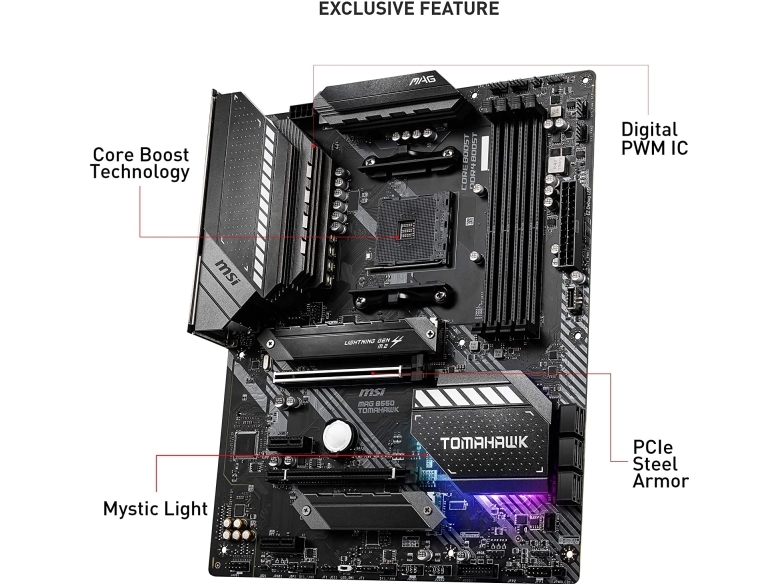

Hardware egenskaberAMD CrossFireX-teknologisupport, MSI Audio Boost, MSI Mystic Light, M.2 Shield FROZR, præmonteret I/O-skjold, MSI Core Boost, MSI PCIe Steel Slot, 10+2+1 Phase Power Design
Diverse
Udstyr inkluderetEtuiskilt
Medfølgende ledninger2 x Seriel ATA kabel
Med softwareDrivers & Utilities
Bredde30.5 cm
Dybde24.4 cm
;
;
